Esquire Technologies - USB Extenders

1 to 5 of 5 items

Page 1

Stock Code: 150958

Manhattan Hi-Speed USB Active Extension Cable- Daisy-Chainable, A Male / A Female, 20 m, Retail Box, Limited Lifetime Warranty

Click Here For More Detail

Click Here For a Quick Description

Manhattan Hi-Speed USB Active Extension Cable- Daisy-Chainable, A Male / A Female, 20 m,

Easily overcome distance limitations to connect USB devices.

Daisy-Chainable, A Male / A Female- Hi-Speed USB Active Extension Cable

Product Overview
Use the Manhattan Hi-Speed USB Active Cable to connect a computer USB port to a USB device almost anywhere in the room. Daisy-chain 2 cable extensions to provide a convenient, 40m (131-ft.) connection. Manhattan Hi-Speed USB Active Cable with built-it repeater is fully-compliant with USB 1.1 and Hi-Speed USB specifications to help devices operate at maximum performance. Plug-and-play capability, Windows/Macintosh versatility and no external power or driver requirements help provide greater flexibility in computer and peripheral placement and office layout.

Features
•Extends and boosts the signal to any USB device — supports data transfer speeds up to 480 Mbps
•Built-in repeater helps maintain Hi-Speed USB signal quality, electrical and timing specifications
•Overcomes the 20m (65-ft.) USB distance limitation — ideal for connecting enclosures and other peripherals
•Daisy-chain two extensions for total distance of 40 m (131 ft.)
•Plug and play; Windows and Mac compatible; bus powered — requires no external power supply

Specifications
•Standard-A male
•Standard-A female
•Throughput: 480 Mbps
•Bus powered
•Maximum length:20m
•All USB-supported operating systems
•Weight: 587 g (21 oz.)

Package Contents
•Hi-Speed USB Active Cable

Stock Code: PME-4U

Orico 4 Port USB3.0 PCI-E Expansion Card-Four high speed USB3.0 ports, Transfer speeds of up to 5gbps, Standard PCI-E connector, Small form factor, Widely compatible with Windows, Mac and Linux, OEM, 1 Year Warranty

Click Here For More Detail

Click Here For a Quick Description

Orico 4 Port USB3.0 PCI-E Expansion Card-Four high speed USB3.0 ports, Transfer speeds of up to 5Gbps, Standard PCI-E connector, Small form factor, Widely compatible with Windows, Mac and Linux, OEM, 1 Year Warranty

Product Overview
The Orico 4 Port USB3.0 PCI-E Expansion Card allows you to expand your desktop's USB ports with Four high speed USB3.0 ports. This card features four high speed USB3.0 Type-A ports that support transfer speeds of up to 5gbps. It is easy to install, slotting into your motherboard's standard PCI-E slot. Its small form factor ensures that it will not interfere with your other components. Widely compatible with Windows, Mac and Linux

Specifications
• Stock Code PME-4U
• Description Orico 4 Port USB3.0 PCI-E Expansion Card
• Product Type Small form factor Four high speed USB3.0 ports Standard PCI-E connector
• Input Port PCB + Metal
• Output Interface USB3.0 Type-A*4
• -Input Interface: PCI-E 2.0 Host Interface
• Power Supply Chassis Power Supply Big 4 Pin (Molex Interface）
• Features Quickly Expands 4 USB3.0 Interfaces
• Accessories 2 Screws,15 Pin SATA to Big 4 Pin Power Cord
• Dimensions: 12 x 7 x 1.9 cm
• *USB cables not included

What's in the box
• Orico 4 Port USB3.0 PCI-e Express Card
• 15Pin SATA to Molex cable
• Pack of Screws

Stock Code: 179300

Manhattan USB Line Extender-Extends The Distance To Any USB Device Up To 60 m (196 ft.), Retail Box, Limited Lifetime Warranty

Click Here For More Detail

Click Here For a Quick Description

Manhattan USB Line extender - Up to 60M Retail Box Limited Lifetime Warranty

Extends The Distance To Any USB Device Up To 60 m (196 ft.)

Product Overview

The MANHATTAN USB Line Extender easily bridges the distance between a USB device and a PC host without signal loss. The local and remote units with the UNIQUE UIC 4102 chipset and a Cat5e network cable (not included) can connect, process and repeat USB signals. The local and receiver units can also be used separately to customize cables of any length up to 60 m (196 ft.).

Offers Flexibility for Virtually Any USB Device
Use the MANHATTAN USB Line Extender to overcome the USB distance restriction and expand device and PC locations and better organize productive office arrangements. The MANHATTAN USB Line Extender can help extend a USB keyboard and mouse during presentations, operate a barcode scanner in retail point-of-purchase applications, access a printer in another room and improve other USB applications without signal loss or interference.

Easy to Install and Transport
It's small, lightweight and portable with no external power supply or drivers required, making it ideal for travel and use almost anywhere. Plug and Play capability and Windows and Macintosh compatibility make installation easy and quick.

Features

Extends the distance of barcode scanners, printers, digital cameras, keyboard/mouse and other USB devices from a USB-enabled computer
Embedded transceivers enhance signal and prevent signal loss
Bus powered – requires no external power supply
Windows and Mac compatible
Lifetime Warranty

Extends the distance of barcode scanners, printers, digital cameras, keyboard/mouse extensions and other USB devices from a USB-enabled computer
Embedded transceivers enhance signal and prevent signal loss
Bus powered – requires no external power supply
Windows and Mac compatible
Lifetime Warranty

Stock Code: 150248

Manhattan Hi-Speed USB Active Extension Cable - Daisy-Chainable, A Male / A Female, 10 m (33 ft.), Retail Box, Limited Lifetime Warranty

Click Here For More Detail

Click Here For a Quick Description

Manhattan Hi-Speed USB Active Extension Cable - Daisy-Chainable, A Male / A Female, 10 m (33 ft.) , Retail Box, Limited Lifetime Warranty

Easily overcome distance limitations to connect USB devices.
Use the Manhattan Hi-Speed USB Active Extension Cable to connect a computer USB port to a USB device almost anywhere in the room. Up to three daisy-chainable cable extensions provides a convenient, 30 m (99 ft.) connection. Manhattan Hi-Speed USB Active Extension Cable with built-in repeater is fully compliant with USB 1.1 and Hi-Speed USB specifications to help devices operate at maximum performance levels. Plug- and-play capability, Windows/Mac versatility and no external power or driver requirements help provide greater flexibility in computer and peripheral placement and office layout.

Features

•Extends and boosts the signal to any USB device – supports data transfer speeds up to 480 Mbps
•Built-in repeater helps maintain Hi-Speed USB signal quality, electrical and timing specifications

•Overcomes the 5m (16-ft.) USB distance limitation – ideal for connecting enclosures and other peripherals

•Daisy-chain up to three extensions for a total distance of 30 m (99 ft.)

•Plug and play; Windows and Mac compatible; bus power requires no external power supply

Specifications

Electrical:
USB power output: 5 V ±5% / 232 mA

Ports
•Standard-A male
•Standard-A female

General
•Throughput: 480 Mbps
•Bus powered
•Maximum length: 30 m (99 ft.)
•All USB-supported operating systems

Physical
•Length: 10 m (33 ft.)
•Weight: 314 g (11.1 oz.)

Package Contents
•Hi-Speed USB Active Extension Cable

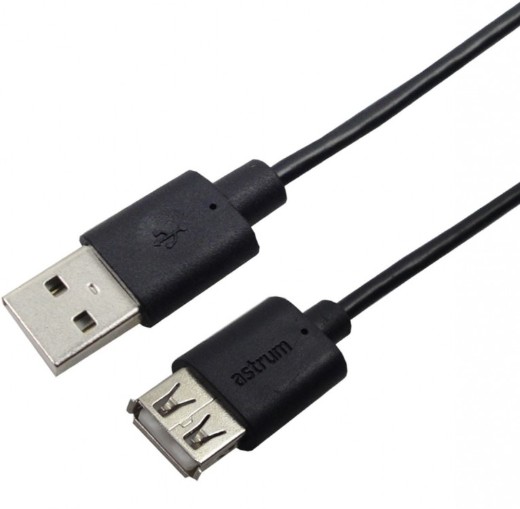

Stock Code: USBEXTCAB-5M

The USBEXTCAB-5M a 5-meter USB extension cable designed for extending connectivity between USB devices and hosts. Based on related listings for the USBEXTCAB-10M (from UNIQUE) and similar products, it likely supports USB 2.0 standards with data transfer speeds up to 480Mbps, suitable for peripherals like printers, keyboards, or external drives

Click Here For More Detail

Click Here For a Quick Description

Product Overview
The USBEXTCAB-5M appears to be a 5-meter USB extension cable designed for extending connectivity between USB devices and hosts. Based on related listings for the USBEXTCAB-10M (from UNIQUE) and similar products, it likely supports USB 2.0 standards with data transfer speeds up to 480Mbps, suitable for peripherals like printers, keyboards, or external drives. While exact specifications are unconfirmed in available listings, comparable models from brands like Unitek or Amplify suggest features such as gold-plated connectors and shielding for stable signal transmission. The product’s primary use case involves extending USB connections over longer distances where direct ports are inaccessible. Availability and pricing may vary, with retailers like ComX Computers listing similar cables in their inventory under generic descriptions. For precise details, verification with retailers is recommended due to limited manufacturer-specific information in search results.

Specifications
Product Code: USBEXTCAB-5M
Product Overview:5-meter USB extension cable
Type:
USB 2.0 (e.g., CAB-USB-EXT-5M-BLK-U) or USB 3.0/3.1 (e.g., CAB-USB3-EXTA-5M-U).
Connector: Male-to-Female (A-to-A for extensions) or device-specific (e.g., A-to-B for printers).
Speed:
USB 2.0: 480Mbps data transfer, backward-compatible with USB 1.1.
USB 3.0/3.1: 5Gbps (Gen 1), with active extension chips for stable long-distance use.
Design:
USB 2.0: Built-in extension chipset to overcome 5-meter signal limitations.
USB 3.0/3.1: Aluminum housing for durability, active signal-boosting technology.
Shielding: Tin/copper shielding (e.g., Astrum UB205) to reduce EMI/RFI interference.
Use Case:
Extends USB connections for printers, cameras, keyboards, or external drives.
Compatible with USB 2.0/3.0/3.1 devices depending on model.
Length: 5 meters (standard across all variants)
