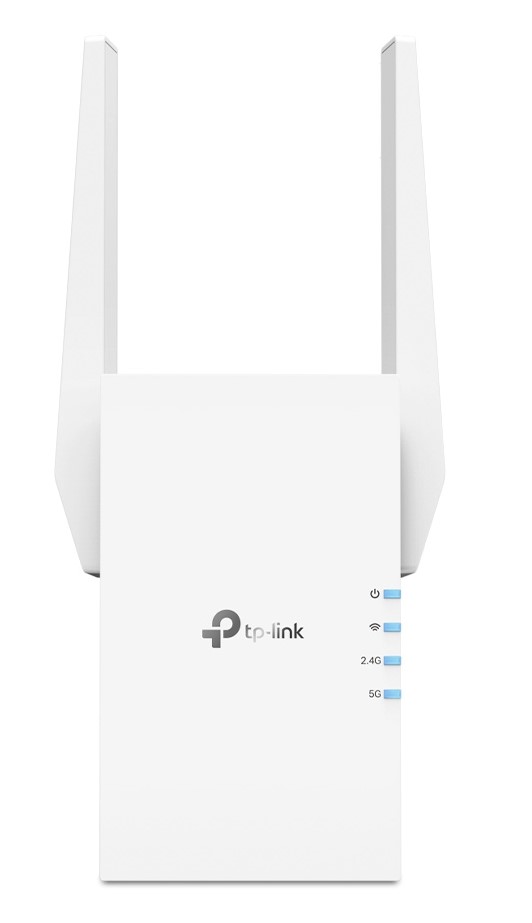

"AX3000 Wi-Fi 6 Range Extender SPEED: 574 Mbps at 2.4 GHz + 2402 Mbps at 5 GHz SPEC: 2 × External Antennas, 1 × Gigabit Port, Qualcomm 1.0GHz Dual-Core CPU, 1024 QAM, HE160, Wall Plugged FEATURE: Tether App, WPS, Intelligent Signal Light, Access Control, Power Schedule, LED Control, RE/AP Mode, Easymesh (Compatible with Onemesh), Beamforming, MU-MIMO, OFDMA"
Product Overview
The AX3000 Mesh WiFi 6 Extender is a cutting-edge networking solution that offers dual-band WiFi 6, separating 5 GHz and 2.4 GHz bands for faster speeds and greater capacity. It enables uninterrupted streaming by creating a seamless TP-Link OneMesh network for whole-home coverage and supports AP mode through a Gigabit Ethernet port. With easy setup and management via the TP-Link Tether app, this extender is ideal for enhancing wired networks and providing high-speed access for devices like smart TVs and gaming consoles.
Specifications
•Product Code: TL-RE705X
•Description: TP-LINK AX3000 WI-FI 6 RANGE EXTENDER
•Ports: 1 x Gigabit Ethernet Port
•Button: WPS Button, Reset Button
•Input Power: 100 - 240V, 50/60Hz
•Power Consumption: 12.6W
•Antenna: 2 x External Antennas WIRELESS FEATURES
•Wireless Standards: IEEE 802.11a/n/ac/ax 5GHz, IEEE 802.11b/g/n/ax 2.4GHz
•Frequency: 2.4GHz and 5GHz
•Signal Rate: 574Mbps at 2.4GHz, 2402Mbps at 5GHz
•Reception Sensitivity:
5GHz:
a) 11a 6Mbps: -97dBm
b) 11a 54Mbps: -78dBm
c) 11ax HE20 MCS0: -97dBm
d) 11ax HE20 MCS11: -66dBm
e) 11ax HE40 MCS0: -94dBm
f) 11ax HE40 MCS11: -62dBm
g) 11ax HE80 MCS0: -91dBm
h) 11ax HE80 MCS11: -61dBm
i) 11ax HE160 MCS11: -59dBm
2.4GHz:
a) 11g 6Mbps: -96dBm
b) 11g 54Mbps: -78dBm
c) 11ax HE20 MCS0: -95dBm
d) 11ax HE20 MCS11: -66dBm
e) 11ax HE40 MCS0: -93dBm
f) 11ax HE40 MCS11: -62dBm
•Transmit Power: CE: 2.4GHz <16dBm, 5GHz <21dBm
•Wireless Modes: Range Extender, Access Point
•Wireless Functions: Enable/Disable Wireless Radio, Wireless Statistics
•Wireless Security: WEP, WPA, WPA2, WPA3
