Esquire Technologies - Networking (KVM Switch)

1 to 6 of 6 items

Page 1

Stock Code: REX-KAAG-E3114

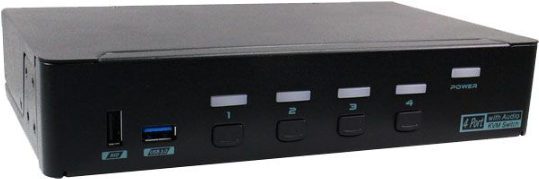

Rextron KAAG-E3114 4-Port USB3.0 KVM Switch with VGA and Audio - 4 computers share different USB peripherals (4 HID device + 3 USB3.0 Devices), Supports video resolutions up to Full HD (1920 x 1080) / WUXGA (1920 x 1200), Support simultaneously virtual HID function.

Click Here For More Detail

Click Here For a Quick Description

Product Overview

The Rextron KAAG-E3114 4-Port USB3.0 KVM Switch enables seamless control of up to 4 computers using one set of keyboard, mouse, monitor, and audio devices, supporting 4 HID devices plus 3 USB 3.0 peripherals. It delivers video resolutions up to Full HD (1920 x 1080) and WUXGA (1920 x 1200), with simultaneous virtual HID function for smooth device sharing. Featuring front panel pushbuttons, hotkey control, and plug-and-play setup, it supports multiple OS platforms without software installation, optimizing workspace efficiency.

Features

•4 computers share different USB peripherals (4 HID device + 3 USB3.0 Devices)
•Supports video resolutions up to Full HD (1920 x 1080) / WUXGA (1920 x 1200)
•Support simultaneously virtual HID function
•Front panel push buttons and hotkey functions for easy computer selection
•Activate auto scan by front buttons
•Selectable scan time interval
•Buzzer sound for computer switching confirmation

Stock Code: REX-MAAG-114

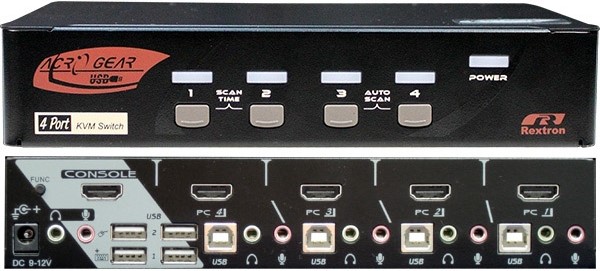

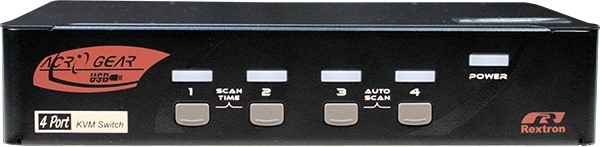

Rextron 4 Port HDMI KVM Switch with USB 2.0, Two Way Audio, HDCP, MAAG-114

Click Here For More Detail

Click Here For a Quick Description

Rextron 4 Port HDMI KVM Switch with USB 2.0, Two Way Audio, HDCP, MAAG-114

Product Overview

The Rextron 4-Port HDMI KVM Switch MAAG-114 allows seamless control of 4 computers with shared USB 2.0 peripherals, keyboard, mouse, and two-way audio, supporting USB console and hot-plug detection. It is HDCP compliant and Blu-ray ready, featuring front panel pushbuttons, hotkey functions, and a rear FUNC button for easy video signal adjustment. Designed with a screw-free, streamlined form factor, it supports VESA and CEA standards for compatibility with modern digital desktop monitors.

Features

•4 computers share 4 different USB peripherals ( KB + MS + USB 2.0 Devices)
•Support USB console
•Supports hot plug and un-plug detection and link status-failure detection
•HDCP compliant and Blu-ray ready
•Front panel pushbuttons for easy computer selection
•Rear panel FUNC button for easily adjusting the video signal strength
•Buzzer sound for computer switching confirmation
•Hotkey functions allow easy computer access
•Supports existing VESA and Consumer Electronics Association (CEA) standards
•Screw-free design, the streamlined form factor for new all digital desktop monitors
•Complete interoperability
•Support Audio (Speaker + Mic); through HDMI Type A Female if CPU's audio sent with video over HDMI port

Specifications

•Product Code: REX-MAAG-114
•Description: Rextron 4-Port HDMI KVM Switch MAAG-114
Computer/Server Ports (input)
•HDMI x 4 ( Single Display x 4 PCs )
•USB 2.0 Type B x 4
•Audio Jack in x 4
•Audio Jack out x 4
Console Ports (output)
•HDMI x 1 ( Single Display )
•USB 2.0 Type A x 2 ( Rear )
•USB HID Type A x 2 ( Rear )
•Audio Jack in x 1
•Audio Jack out x 1
Video Resolution (Max.)
•1920x1200@60Hz (4:4:4)
•1920x1080@60Hz (4:4:4)
Push Buttons
•Port Selection x 4
•FUNC button x 1
•HDCP Compliance: CP 1.4
•Control Methods: Hotkey / Push Button
LED Indicator (Power / Status)
•Computer Ready x 4 (Green)
•Computer Selected x 4 (Red)
•Power x 1
•Automatic scan interval: 3, 8, 15, 30 seconds
•Power Supply: DC 9~12V
•Operation Environment: 0~40°C, Humidity<80%
•Storage Temperature: -20~60°C
•Enclosure: Metal
•H x W x D (mm): 44 x 220 x 130
•Weight (g): 1000

Stock Code: TK-804R

TrendNet (TK-804R) 8 Port Stackable Rack Mount KVM Switch with On Screen Display - Supports both USB and PS/2 connections to console port, High video quality; up to 2048 x 1536 VGA resolution, Built-in daisy-chain port for cascading up to 8 levels (64 computers), Password protection with Auto timeout logout, Plug & Play and Hot-Pluggable, Standard 19” (1U) rack mount design, Retail Box, 1 year Limited Warranty

Click Here For More Detail

Click Here For a Quick Description

Product Overview:

The 8-Port USB KVM Switch with On Screen Display (TK-804R) lets you manage multiple computers with just one set of keyboard, monitor and mouse. This rack mount device supports USB and PS/2 interface on the console side and USB interface on the PC side. Users can switch between PCs using hot-key, push button or On Screen Display for flexible management. Hot-plug PCs quickly to avoid downtime. A maximum of 64 PC connections are supported when you daisy chain multiple TK-804R(s).The 8-Port USB KVM Switch is the perfect choice for managing multiple PC's.

Highlights:

• 8-port stackable KVM switch with VGA and USB connection to computers
• On Screen Display (OSD) interface for easy management
• Device monitoring with adjustable Auto-Scan, audible feedback and cascade up to 64 computers
• Supports most operating systems and advance mouse designs

• Supports both USB and PS/2 connections to console port
• High video quality; up to 2048 x 1536 VGA resolution

Stock Code: TK-240DP

TrendNet 2-Port Dual Monitor DisplayPort KVM Switch, Retail Box, 6 months Limited Warranty

Click Here For More Detail

Click Here For a Quick Description

TRENDnet 2-Port Dual Monitor DisplayPort KVM Switch, Retail Box, 2 year Limited Warranty

Product Overview

TRENDnet’s 2-Port Dual Monitor DisplayPort KVM Switch, model TK-240DP, allows you to control two computers with one set of console controls. Experience up to 4K UHD resolutions, no driver installation required. The TK-240DP is designed for dual monitor systems with USB mouse and keyboard connections, and features a two-port USB hub to share storage devices or printers between computers.

Features

• Dual Monitor DisplayPort™ 1.2 KVM

• 3.5mm speaker and microphone connections

• Designed for use with Dual DisplayPort systems

• Supports 4K UHD resolutions up to 3840 x 2160

• 2-Port USB 2.0 hub for storage devices and printers

• Required cabling (TK-CP06) sold separately

• No CD installation required

Stock Code: SP226A

Micronet KVM 16Port Switch+OSD (Cables NOT Included) to purchased separately , Retail Box , 1 year Limited Warranty

Click Here For More Detail

Click Here For a Quick Description

Micronet KVM 16Port Switch+OSD (Cables NOT Included) to purchased separately Retail Box 1 year Limited Warranty

Product Overview

KVM switches are widely used today and can be found in almost every data center. Micronet's KVM switch could handle dozens of computers and allows you to connect multi-platform computers, such as Windows, Linux, Unix and Novell. The Micronet SP226A device allows a user to easily access any of the connected computers via a simple switching action that can be accomplished by a push button or an OSD (on screen display) menu.

KEY FEATURE
- On Screen Display (OSD) menu for easy management
- Compatible with MS-DOS, Windows 3.1/95/98/2000/ME/NT/XP, Linux, Unix, Novell
- Support high VGA resolution 2048x1536
- Control 16(SP226A) computers with one keyboard, mouse, and video
- Provide cascade feature : up to 256 computers

- Auto scan mode for monitoring computers, with configurable scan interval from 1~255 seconds
- Provide reset function to retrieve the signal of keyboard/ video/ mouse
- Plug & Play, no software or interface card required
- Provide integrated HDDB 15(Male) 3-in-1 connector, easy to connect to computers and save space
- Convenient hot keys and individual push buttons for switching computers
- Provide automatic keyboard/video/mouse signal simulation for user to be able to boot-up computer simultaneously

SPECIFICATION
Model SP226A
Computer Connections Direct 16 After Cascade 256
LED Indicator Green for computer link, Orange for computer selected
Installation Type Desktop or Rack-mounted, Cascade
Methods of Control Push button, Hot-key, OSD
Automatic Scan Interval 1-255 seconds
Compatible OS MS-DOS, Win3.1/95/98/2000/ME/NT/XP, Linux, Unix, Novell
VGA Resolution 2048 x 1536
Max Cable Length 30m for console port (keyboard/video/mouse), 35m for computer connection
Console Connector Video: HDDB-15(Female), Keyboard: PS/2, Mouse: PS/2
Computer Connector HDDB-15(Male)
Cable Type 3 in 1 KVM cable (C200B series)
Operating Temperature 0 o C~50 o C
Operating Humidity 0%~80%, non-condensing
Power Supply DC 9V, 500mA
Dimensions 438 x 180 x 44 mm
Net/Gross Weight 2.9/3.46 kg
Emission FCC, CE

Stock Code: TK-803R

TrendNet (TK-803R) 8 Port Rack Mount KVM Switch with VGA and USB connection - Supports both USB and PS/2 connections to console port, High video quality, up to 2048 x 1536 VGA resolution, Plug & Play and Hot-Pluggable, Standard 19” (1U) rack mount design, Popular hardware platforms such as PC, Linux and Mac are supported, LEDs display for easy status monitoring, Retail Box, 1 year Limited Warranty

Click Here For More Detail

Click Here For a Quick Description

Product Overview:

The 8-Port USB KVM Switch lets you manage multiple computers with just one set of keyboard, monitor and mouse. This rack mount device supports USB and PS/2 interface on the console side and USB only on the PC side. Popular hardware platforms such as PC, Linux and Mac are supported. Users can switch between PCs using hot-key or push button for flexible management. Users can also hot-plug PCs on the fly to avoid downtime. The 8-Port USB KVM Switch is the perfect choice for managing multiple PC’s.

Highlights:

• 8-port KVM switch with VGA and USB connection to computers

• Supports both USB and PS/2 connections to console port

• Device monitoring with adjustable Auto-Scan and audible feedback

• Supports most operating systems and advance mouse designs
