Stock Code: SOLES51LB100A

Solarix Esener 51.2V 100Ah LiFePo4 Single Battery Module-LCD Control Panel, Advanced BMS With Current Limiting Factor, Normal Voltage: 51.2V, Rated Capacity (5HR):110Ah, Total Usable 4.8 kWh, Maximum Continuous Charging 100A , Maximum Continuous Discharging 100A, Equalised Charge Voltage: 58.4V, Discharge Cut-off Voltage: 40.0V, Easy Wall Mount Or Shelf Rack Installation, Design To Work Perfectly Hybrid Invertors Up To 7KVA, Retail Box , 1 year Limited Warranty

Click Here For More Detail
Click Here For a Quick Description
Solarix Esener 51.2V 100Ah LiFePo4 Single Battery Module-LCD Control Panel, Advanced BMS With Current Limiting Factor, Normal Voltage: 51.2V, Rated Capacity (5HR):110Ah, Total Usable 4.8 kWh, Maximum Continuous Charging 100A , Maximum Continuous Discharging 100A, Equalised Charge Voltage: 58.4V, Discharge Cut-off Voltage: 40.0V, Easy Wall Mount Or Shelf Rack Installation, Design To Work Perfectly Hybrid Invertors Up To 7KVA, Retail Box , 1 year Limited Warranty

Product Overview
The Solarix Esener 51.2V 100Ah LiFePo4 Single Battery Module is a Wall Mount Or Shelf Rack Installation complete with integrated Battery Management System that is perfect for medium to large residential installation with a proven Lithium Iron Phosphate (LifePO4) chemical composition solution that offers a low internal resistance with excellent continuous high current discharge performance and great lifecycle of more than 6000 at 80% DOD. Design To Work Perfectly with Hybrid Invertors Up To 7KVA .Built-in Intelligent Battery Management System (BMS) with RS485 and CAN Bus BMS communication. This is unit is designed for single use but can also be connected in Parallel with up to 15 battery packs to a total of 72kWh. Batteries must be connected in parallel if more than one LiFePO4 battery is to be used. CAN Bus, fully integrates and communicates with leading inverter brands (Growatt, SOLAX, LUXPower, DEYE, MUST, Voltronic, Victron, SMA, etc.)

Highlights
•Esener 51.2V 100Ah LiFePo4 Single Battery Module
•Wall Mount Or Shelf Rack Installation With Brackets Included
•Complete with integrated Battery Management System (BMS)
•Advanced BMS With Current Limiting Factor
•Parallel Connection Up To 15 Packs With Full Communication To A Total Of 72kwh
•Normal Voltage: 51.2V
•Rated Capacity (5HR):110Ah
•Total Usable 4.8 kWh
•Maximum Continuous Charging Current: 100A
•Maximum Continuous Discharging Current: 100A
•Equalised Charge Voltage: 58.4V
•Low Self-Discharge
•High Energy Density and Conversion Efficiency
•Built In Protection -Over-Charge, Over-Discharge, Over-Temperature
•LCD Control Panel
•Bulk Voltage 55.2V-56.8V
•Float Voltage 52.8V-54.4V
•Cut-off Voltage 44.0V-45.6V


 Specifications
•Stock Code SOLES51LB100A
•Description Solarix Esener 51.2V 100Ah LiFePo4 Single Battery Module
•Complete with integrated Battery Management System
•Rated Capacity (5HR): 110Ah
•Voltage: 51.2V
•Discharge Cut-off Voltage: 40.0V
•Equalised Charge Voltage: 58.4V
•Maximum Continuous Charging and Discharging Current: 100A
•Display: LCD
•Parallel: Parallel connection up to 15 packs with full communications
•Cells: New Li-Ion Prismatic Cells
•Design Life: -/+ 15 Years
•Cycle Life @ 1C: +/-4000 Cycles @ 100% DOD, Above 6000 cycles @ 80% DOD
•Ports: 1x CAN Bus, 1x RS-485 Battery Link ports, 2x Parallel Instruction Ports
•Protection: Electronic Circuit Breaker, BMS Voltage Protection, Current Limiting
•Dimensions (WxDxH): 505mm x 162mm x 543mm
•Weight: Approx. 46kg

PDF Link
Stock Code: SOLA48100

Solarix Dyness 48V 100Ah 4.8KWH LiFePo4 Single Battery Module- Advanced BMS With Current Limiting Factor, Battery Module Voltage_ 48V, Rated Capacity 100Ah, Maximum Charge Current 75A, Maximum Continuous Discharging 75A, Charging Cut-Off Voltage 54v, Easy Wall or Floor Standing Mount And Shelf Rack Installation, Communication CAN / RS485, Design To Work Perfectly Hybrid Invertors Up To 8KVA, 6000 Cycles Life, Retail Box, 5 Year Limited Warranty

Click Here For More Detail
Click Here For a Quick Description
Solarix Dyness 48V 100Ah 4.8KWH LiFePo4 Single Battery Module- Advanced BMS With Current Limiting Factor, Battery Module Voltage_ 48V, Rated Capacity 100Ah, Maximum Charge Current 75A, Maximum Continuous Discharging 75A, Charging Cut-Off Voltage 54v, Easy Wall or Floor Standing Mount And Shelf Rack Installation, Communication CAN / RS485, Design To Work Perfectly Hybrid Invertors Up To 8KVA, 6000 Cycles Life, Retail Box, 5 Year Limited Warranty

Product Overview

The Solarix Dyness A48100 Branded 48V 100Ah 4.8KWH LiFePo4 Single Battery Module is a Wall or Floor Mount and Shelf Rack Installation complete that is perfect for medium to large residential installation with a proven Lithium Iron Phosphate (LifePO4) chemical composition solution that offers a low internal resistance with excellent continuous high current discharge performance and great lifecycle of more than 6000 at 80% DOD. Design To Work Perfectly with Hybrid Invertors Up To 8KVA. Built-in Advanced Battery Management System (BMS) with RS485 and CAN Bus communication. This is unit is designed for single use but can also be expanded in Parallel with up to 40 battery packs if more than one LiFePO4 battery is to be used. RS485 and CAN Bus fully integrates and communicates with all leading inverter brands (Growatt, SOLAX, LUXPower, DEYE, MUST, Voltronic, Victron, SMA, etc.)






Download The Datasheet Here
 Highlights
• Dyness 48V 100Ah 4.8KWH LiFePo4 Single Battery Module
• Easy Wall or Floor Standing Mount And Shelf Rack Installation
• Complete with Advanced Battery Management System (BMS)
• Parallel Expansion Connection Up To 40 Packs With Full Communication
• Nominal Voltage: 48V
• Nominal Rated Capacity 100Ah
• Charging Cut-off Voltage: 54.75V
• Recommended C Rate: 0.5C
• Recommended Continuous/Discharge Current:50A
• Maximum Continuous /Discharge Current:75A
• Built In Protection -Over-Charge, Over-Discharge, Over-Temperature
• 6000 Cycles Working Life

Specifications
• Stock Code SOLA48100
• Description Solarix Dyness 48V 100Ah 4.8KWH LiFePo4 Single Battery Module
• Nominal Battery Capacity: 4.8kWh 100Ah.
• Nominal Battery Voltage: 48VDC.
• Recommended Charge/Discharge Current: 50A.
• Maximum Charge/Discharge Current: 75A
• Peak Power Charge/Discharge Current 100A (15s)
• Maximum Discharge Power 3.84kW
• Battery Cell Quantity in series 16 Pieces
• High Safety Cell Level Monitoring And Balancing
• Charging Cut-off Voltage: 54.75VDC
• Communication: CAN/RS485
• Configuration Parallel Expansion With Up To 40 Battery Packs Maximum
• Range of -20~50℃ wide working temperature
• Dimension 558x545x190mm.
• Weight: 50kg.

Product Website
Stock Code: BALI48TSB14

Solarix SunPays 48V 100Ah LiFePo4 Single Battery Module- Touch Screen Control Panel, Intelligent Battery Management System, Normal Voltage 48V, Rated Capacity Typical 105Ah, Total Usable 4.8 kWh, Mean Operation 48.0 to 49.5 V, Charging voltage 51.6 V, Standard Continuous Charge Current 20A to 40A, Maximum Continuous Discharge Current 100A, 19 inch Rack Mount Chassis, Design To Work Perfectly Hybrid Invertors Up To 7KVA 48V, Retail Box , 1 year Limited Warranty

Click Here For More Detail
Click Here For a Quick Description
Solarix SunPays 48V 100Ah LiFePo4 Single Battery Module- Touch Screen Control Panel, Intelligent Battery Management System, Normal Voltage 48V, Rated Capacity Typical 105Ah, Total Usable 4.8 kWh, Mean Operation 48.0 to 49.5 V, Charging voltage 51.6 V, Standard Continuous Charge Current 20A to 40A, Maximum Continuous Discharge Current 100A, 19 inch Rack Mount Chassis, Design To Work Perfectly Hybrid Invertors Up To 7KVA 48V, Retail Box , 1 year Limited Warranty

Product Overview
The Solarix SunPays 48V 100Ah LiFePo4 Single Battery Module- is perfect for medium to large residential installation with a Lithium-ion battery solution with a proven Lithium Iron Phosphate (LifePO4) chemical composition and great performance. Design To Work Perfectly with Hybrid Invertors Up To 7KVA 48V. Standard 19-Inch Rack Mount Embedded designed module for installation and maintenance. Built-in Intelligent Battery Management System (BMS) with RS485 and CAN Bus BMS communication.
Please Note This is unit is designed for single use but can also be connected in Parallel with up to 15 battery packs to a total of 72kWh. Batteries must be connected in parallel if more than one LiFePO4 battery is to be used. Care should be given for cable sizes and copper busbars should be used if large currents is drawn

Highlights
∙ Solarix SunPays 48V 100Ah Lithium Iron Phosphate (Lifepo4) Single Battery Module
∙ Intelligent Battery Management System with RS485 and CAN Bus BMS communication
∙ Design To Work Perfectly Hybrid Invertors Up To 7KVA 48V
∙ Battery Cycle Life ≥ 3500 @ 80% DOD, 25°C 1C (100A)
∙ Normal Voltage 48V
∙ Typical Rated Capacity: 105Ah
∙ Total Usable Energy 4.8KWh
∙ Maximum Continuous Charge Current 100A (controlled by BMS if comm. used)
∙ Maximum Continuous Discharge Current 100A
∙ Easy To Install 19 Inch Rack Mount Chassis
∙ Can also be connected in Parallel with up to 15 battery packs to a total of 72kWh
BMS communication compatible with Following Inverters
Sacolar Inverters , Growatt Inverters, SunPays 5.5kW Inverters, SunPays 4kW / 5kW Inverters (Via TSP Solar Bot)
Sunsynk Inverters, Deye Inverters, Victron Inverters, SMA Inverters, Solis Inverters, Goodwe Inverters, Luxpower Inverters

Stock Code: SOL48100PW

Solarix Ultra Energy Wall Mount 48V 100Ah LiFePo4 Single Battery Module – Nominal Voltage 48V, Rated Capacity: 100Ah, Total Usable Energy 4.8 kWh, Standard Continuous Charge Current 20A, Bulk Absorption: 56V, Float: 54V, Low Voltage Cut Off: 44V, Maximum Continuous Discharge For Single Unit: 50A, Wall Mount Design , CAN Bus Comms, Built-In Battery Management System (BMS), LCD Touchscreen, Design To Work Perfectly With Low Voltage Hybrid Invertors Up To 7KVA 48V, Colour Blue, Retail Box, 6 month Warranty

Click Here For More Detail
Click Here For a Quick Description
Solarix Ultra Energy Wall Mount 48V 100Ah LiFePo4 Single Battery Module – Nominal Voltage 48V, Rated Capacity: 100Ah, Total Usable Energy 4.8 kWh, Standard Continuous Charge Current 20A, Bulk Absorption: 56V, Float: 54V, Low Voltage Cut Off: 44V, Maximum Continuous Discharge For Single Unit: 50A, Wall Mount Design , CAN Bus Comms, Built-In Battery Management System (BMS), LCD Touchscreen, Design To Work Perfectly With Low Voltage Hybrid Invertors Up To 7KVA 48V, Colour Blue , Retail Box , 6 month Warranty

Product Overview
The Solarix Ultra Energy Wall Mount 48V 100Ah LiFePo4 Single Battery Module is designed and perfect for medium to large residential installation with a Lithium-ion battery solution with a proven Lithium Iron Phosphate (LifePO4) chemical composition and great performance. Design To Work Perfectly with Hybrid Invertors Up To 7KVA 48V.

This Wall Mount Embedded Designed Module is designed for a single use renewable energy storage solution. When fully installed, it is a low-voltage DC battery system with an operating voltage of 51.2V, and works with a low voltage inverters to realize the goal of energy storage for home or office applications and supports parallel connection to expand capacity, which can meet various capacity requirements.

It has a built-in battery management system (BMS), which can manage and monitor the pack and cell information – including voltage, current and temperature. What’s more, the BMS can balance cell charging and discharging to extend cycle life

Stock Code: SOLMLP1648100

Solarix Must 51.2V 100Ah LiFePo4 Single Battery Module-LCD Control Panel, Advanced BMS With Current Limiting Factor, Normal Voltage: 51.2V, Rated Capacity (5HR):110Ah, Total Usable 4.8 kWh, Maximum Continuous Charging 100A , Maximum Continuous Discharging 100A, Equalised Charge Voltage: 57.6V, Discharge Cut-off Voltage: 44.0V, Easy Wall Mount Installation, Design To Work Perfectly Hybrid Invertors Up To 7KVA, Retail Box, 3 Year Limited Warranty

Click Here For More Detail
Click Here For a Quick Description
Solarix Must 51.2V 100Ah LiFePo4 Single Battery Module-LCD Control Panel, Advanced BMS With Current Limiting Factor, Normal Voltage: 51.2V, Rated Capacity (5HR):110Ah, Total Usable 4.8 kWh, Maximum Continuous Charging 100A , Maximum Continuous Discharging 100A, Equalised Charge Voltage: 57.6V, Discharge Cut-off Voltage: 44.0V, Easy Wall Mount Installation, Design To Work Perfectly Hybrid Invertors Up To 7KVA, Retail Box, 3 Year Limited Warranty

Product Overview

The Solarix Must  51.2V 100Ah LiFePo4 Single Battery Module is a Wall Mount Installation complete with integrated Battery Management System that is perfect for medium to large residential installation with a proven Lithium Iron Phosphate (LifePO4) chemical composition solution that offers a low internal resistance with excellent continuous high current discharge performance and great lifecycle of more than 6000 at 80% DOD. Design To Work Perfectly with Hybrid Invertors Up To 7KVA .Built-in Intelligent Battery Management System (BMS) with RS485 and CAN Bus BMS communication. This is unit is designed for single use but can also be connected in Parallel with up to 4 battery packs. Batteries must be connected in parallel if more than one LiFePO4 battery is to be used. CAN Bus, fully integrates and communicates with leading inverter brands (Growatt, SOLAX, LUXPower, DEYE, MUST, Voltronic, Victron, SMA, etc.)

Highlights

•Must  51.2V 100Ah LiFePo4 Single Battery Module
•Wall Mount Installation With Brackets Included
•Complete with integrated Battery Management System (BMS)
•Advanced BMS With Current Limiting Factor
•Parallel Connection Up To 4 Packs With Full Communication
•Communication CAN 2.0/RS232/RS485
•Nominal  Voltage: 51.2V
•Nominal Capacity 100Ah
•Total Usable 4.8 kWh
•Maximum Continuous Charging Current: 100A
•Maximum Continuous Discharging Current: 100A
•Equalised Charge Voltage: 57.6V
•Low Self-Discharge
•High Energy Density and Conversion Efficiency
• Built In Protection -Over-Charge, Over-Discharge, Over-Temperature
•LCD Control Panel with Battery Level Indicator
•Bulk Voltage 55.2V-56.8V
•Float Voltage 52.8V-54.4V
•Cut-off Voltage 44.0V-45.6V

Specifications

•Stock Code SOLMLP1648100
•Description Solarix Must  51.2V 100Ah LiFePo4 Single Battery Module
•Complete with integrated Battery Management System
•Rated Capacity  100Ah
•Voltage: 51.2V
•Discharge Cut-off Voltage: 40.0V
•Equalised Charge Voltage: 57.6V
•Maximum Continuous Charging and Discharging Current: 100A
•Display: LCD Panel And Battery Indicator
•Parallel: Parallel connection up to 4 packs with full communications
•Design Life: -/+ 15 Years
•Cycle Life @ 1C: +/-4000 Cycles @ 100% DOD, Above 6000 cycles @ 80% DOD
•Ports: 1x CAN Bus, 1x RS-485 Battery Link ports,
•Protection: Electronic Circuit Breaker, BMS Voltage Protection, Current Limiting
•Dimensions (WxDxH): 400mm x 150 mm x 580mm
•Weight: Approx. 44kg

Stock Code: SOLNE25120AH

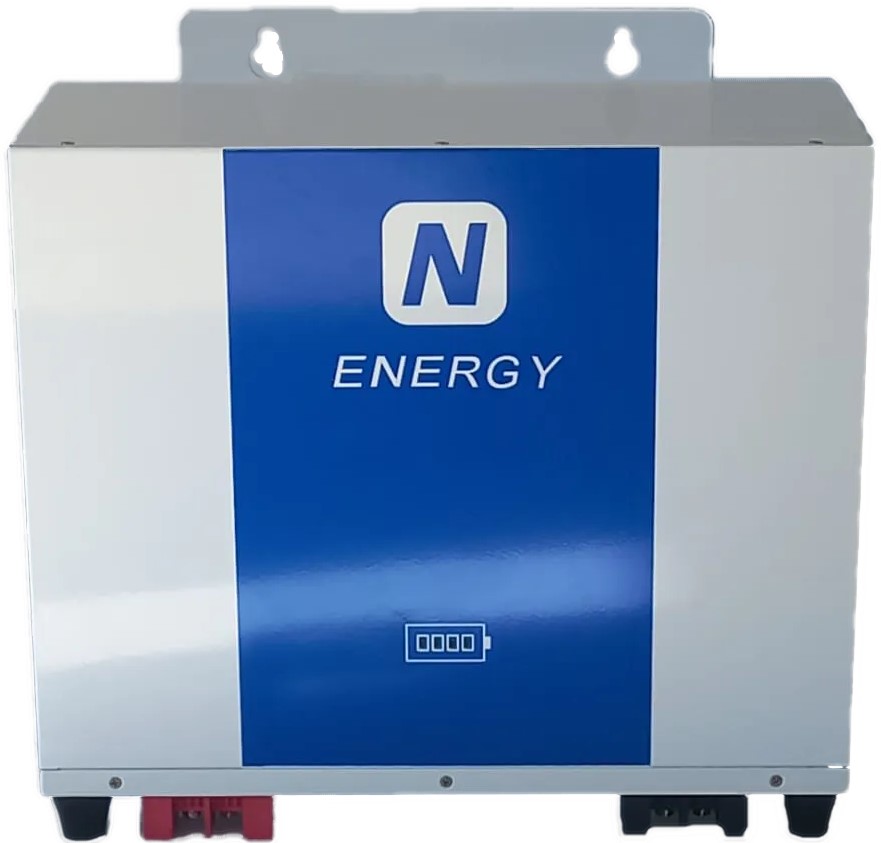

Solarix Nenergy 25.6V 120Ah LiFePo4 Single Battery Module- Total Usable Energy 2.56kWh, LCD Control Panel, Nominal Voltage 25.6V, Nominal Rated Capacity 120AH, Continuous Charging 30A, Continuous Discharging 30A, Working Voltage Range – 22.4V – 29.2V, Wall Mount or Floor Standing Design With Brackets Included , Design To Work Perfectly With 24V Invertors Up To 3.5KVA, Retail Box, 1 Year Limited Warranty

Click Here For More Detail
Click Here For a Quick Description
Solarix Nenergy 25.6V 120Ah LiFePo4 Single Battery Module- Total Usable Energy 3.07kWh, Nominal Voltage 25.6V, Nominal Rated Capacity 120AH, Continuous Charging 30A, Continuous Discharging 50A, Working Voltage Range – 21.6V – 29.2V, Wall Mount or Floor Standing Design With Brackets Included , Design To Work Perfectly With 24V Invertors Up To 3.5KVA, Retail Box, 1 Year Limited Warranty

Product Overview

The Solarix Nenergy 25.6V 120Ah LiFePo4 Single Battery Module with Total Usable Energy 3.07kWh is designed for Floor Standing or Wall Mount Installations that is perfect for small to medium residential or office installations and design to work perfectly with 24V Invertors Up To 3.5KVA. The proven Lithium Iron Phosphate (LifePO4) chemical composition solution offers a low internal resistance with excellent continuous high current discharge performance and great lifecycle of more than 4000 at 80% DOD.

This Is Unit Is Designed For Single Use Installation And Cannot Be Connected In Parallel.

User Define Settings
•Bulk Charge Voltage 29.2V
•Floating Voltage 28.4
•Cut-Off Voltage 21.6V

Specifications

• Stock Code SOLNE25120AH
• Description Solarix Nenergy 25.6V 120Ah LiFePo4 Single Battery Module
• Product Type Wall Mountable or Floor Standing 25.6V 120Ah Lithium Battery
• Design To Work Perfectly With 24V Invertors Up To 3.5KVA
• Total Usable Energy 3.07kWh
• Nominal Voltage 25.6V
• Nominal Rated Capacity 120AH
• Continuous Charging 30A
• Maximum Continuous Discharging 50A
• Working Voltage Range – 21.6V – 29.2V
• Design Life: -/+ 5 Years
• Wall Mount or Floor Standing Design With Brackets Included]
• Protection: Electronic Circuit Breaker, Voltage Protection, Current Limiting
• Dimensions (LxWxH): 498 x 192 x 490
• Weight 30kg
• 1 Year Limited Warranty

Stock Code: SOLLP1624100

Solarix Infinisolar 25.6V 100Ah Lifepo4 Single Battery Module- Total Usable Energy 2.56KWh , Normal Voltage: 25.6V, Rated Capacity (5HR): 100 Ah, Voltage Range 22.0V to 29.2V, LCD Display and Battery Level Indicator , Continuous Charging Current: 100A, Continuous Discharging Current: 100A, Low Self-Discharge, Wall Mount Unit, Parallel Up to 15 units, Work Perfectly Hybrid Inverters Up To 3.5KVA 24V, Colour White, Retail Box, 3 Year Limited Warranty

Click Here For More Detail
Click Here For a Quick Description
Solarix Infinisolar 25.6V 100Ah Lifepo4 Single Battery Module- Total Usable Energy 2.56KWh , Normal Voltage: 25.6V, Rated Capacity (5HR): 100 Ah, Voltage Range 22.0V to 29.2V, LCD Display and Battery Level Indicator , Continuous Charging Current: 100A, Continuous Discharging Current: 100A, Low Self-Discharge, Wall Mount Unit, Parallel Up to 15 units, Work Perfectly Hybrid Inverters Up To 3.5KVA 24V, Colour White, Retail Box, 3 Year Limited Warranty

Product Overview
The Solarix Must ( Infinisolar Branded ) 2.56 kWh 25.6V 100Ah Lifepo4 Single Battery Module is perfect for an entry level small to medium residential or business installation with a proven Lithium Iron Phosphate (LifePO4) chemical composition and great performance. Design To Work Perfectly with Hybrid Inverter system Up To 3.5KVA 24V and has a long lifespan of up to 10 years . Standard Wall Mount Design or easy installation and maintenance.




Features
• Must (Infinisolar Branded) 2.56 Kwh 25.6V 100 Ah Lithium Iron Phosphate Battery Module
• Design To Work Perfectly Hybrid Invertors Up To 3.5KVA 24V
• Built-In Protection For Over-Charge, Over-Discharge & Over-Temperature
• Long Lifespan Up To 10 Years
• Cycle Life Up to 6000 cycles @ 80% DOD
• Normal Voltage 25.6V
• Rated Capacity: 100Ah
• Total Usable Energy 2.56KWh
• Voltage Range 22.0V to 29.2V
• Charge Current 100A
• Discharge Current 100A
• LCD Display and Battery Level Indicator
• Communication CAN Bus 2.0, RS232 and RS485
• Parallel Up to 15 units
• Wall Mount Chassis

Specifications

•Stock Code SOLLP1624100
•Description Solarix Infinisolar Branded 2.56 Kwh 25.6V 100 Ah Lithium Iron Phosphate Battery
•Rated Capacity (5HR): 100Ah.
•Voltage: 25.6V.
•Total Usable Energy 2.56KWh
•Discharge Cut-off Voltage: 22.0V.
•Equalised Charge Voltage: 29.2V.
•Floating Voltage  26.4V -27.2V
•Bulk Voltage 27.6V -28.4V
•Maximum Continuous Charging Current: 100A.
•Maximum Continuous Discharging Current: 100A.
•Display: LCD Panel and Battery Level Indicator
•Ports: 2x Positive Socket, 2x Negative Socket, 1x Power switch.
•Design Life: -/+ 10 Years.
•Cycle Life @ 1C: +/-2200 Cycles @ 100% DOD, Up to 6000 cycles @ 80% DOD.
•Protection: Electronic Circuit Breaker, BMS Voltage Protection, Current Limiting.
•Dimensions (WxDxH): 450mm x 442mm x 140mm.
•Weight: Approx. 23kg

Stock Code: SOLNE12V100AH

Solarix Nenergy 12V 100Ah LiFePo4 Single Battery Module- Wall Mount Unit , Nominal Voltage 12.8V, Rated Capacity 100AH, Total Usable Energy 1.280KWh, Continuous Charging 20A, Continuous Discharging 50A, Working Voltage Range 11.6V-14.6V, Wall Mount Unit Design To Work Perfectly With 12V Hybrid Invertors Up To 2KVA, , Retail Box, 1 Year Limited Warranty

Click Here For More Detail
Click Here For a Quick Description
Solarix Nenergy 12V 100Ah LiFePo4 Single Battery Module- Wall Mount Unit , Nominal Voltage 12.8V, Rated Capacity 100AH, Total Usable Energy 1.280KWh, Continuous Charging 20A, Continuous Discharging 50A, Working Voltage Range 11.6V-14.6V, Wall Mount  Unit Design To Work Perfectly With 12V Hybrid Invertors Up To 2KVA, , Retail Box, 1 Year Limited Warranty

Product Overview
The Solarix Nenergy 12V 100Ah LiFePo4 Single Battery Module is a Lead-Acid/AGM /Gel batter battery replacement, This Wall Mountable standalone design Li-ion LiFePO4 battery with Total Usable Energy 1.280 kWh is perfect for small to medium residential or office installations with a proven Lithium Iron Phosphate (LifePO4) solution that offers a low internal resistance with excellent continuous high current discharge performance and great lifecycle of more than 2000 at 80% DOD. Design To Work Perfectly with 12V Inverters Up To 2KVA.

Not suitable for starting engines or other extreme high current draw applications.

Highlights

•Nenergy 12.8V 100Ah LiFePo4 Single Battery Module
•Wall Mount Installation Unit
•Nominal Voltage: 12.8V
•Working Voltage Range 12V
•Rated Capacity 100Ah
•Total Usable Energy 1.280 kWh
•Maximum Continuous Charging Current: 20A
•Maximum Continuous Discharging Current: 50A
•Working Voltage Range 116V-14.6V
•Built In Protection -Over-Charge, Over-Discharge, Over-Temperature

Specifications
•Stock Code SOLNE12V100AH
•Description Solarix Nenergy 12V 100Ah LiFePo4 Single Battery Module
Product Type Wall Mountable 12V 100Ah LiFePo4 Single Battery Module
•Rated Capacity 100Ah
•Nominal Voltage 12.8V
•Working Voltage Range 12V
•Maximum Continuous Charging Current: 20A
•Maximum Continuous Discharging Current: 50A
•Cells: New Li-Ion Prismatic Cells
•Design Life: -/+ 10 Years
•Cycle Life @ 1C: +/-1000 Cycles @ 100% DOD, Above 2000 cycles @ 80% DOD
•Protection: Electronic Circuit Breaker, Voltage Protection, Current Limiting
•Dimensions (LxWxH): 72x7x25cm
•Weight: Approx.9.5kg

Stock Code: SOLXCLB12V20AH

Solarix XCube 12V 20Ah Rechargeable Lithium Battery - Nominal Voltage 12.8V, Nominal Capacity 20Ah, Rated Energy 256.4Wh, Rechargeable LiFePO4 Li-ion Battery, BMS Function Overcharge and Discharge, Overcurrent and Temperature Protection, Recommended Charge Voltage 14.4V - 14.6V, Discharge Cut-off Voltage 10.8V, Max. Continuous Charge/Discharge Current 20A, Long Service Life Of Around 3000 Cycles, Retail Box, 2 Year Warranty

Click Here For More Detail
Click Here For a Quick Description
Solarix XCube 12V 20Ah Rechargeable Lithium Battery - Nominal Voltage 12.8V, Nominal Capacity 20Ah, Rated Energy 256.4Wh, Rechargeable LiFePO4 Li-ion Battery, BMS Function Overcharge and Discharge, Overcurrent and Temperature Protection, Recommended Charge Voltage 14.4V - 14.6V, Discharge Cut-off Voltage 10.8V, Max. Continuous Charge/Discharge Current 20A, Long Service Life Of Around 3000 Cycles, Retail Box, 2 Year Warranty

Product Overview
The Solarix XCube 12.8V 20Ah Rechargeable Lithium Battery is designed to be Lead Acid Battery Replacement for Alarms, CCTV, Electrical Gate and Garage Motors with a long service life of around 3000 cycles  which is more than 8 times comparing with Lead-acid batteries which are usually only 300-400 cycles) providing 100% of rated capacity each time when you use. The built-in Battery Management System protects the cell from getting damaged like: over or under-voltage, over-current, high temperature or short-circuiting .Additional uses for this battery is in Caravans , Marine boats , Golf carts , solar panels or used as a backup power supply.

Please note that these batteries cannot be connected in series and cannot be used in an Uninterrupted Power Supply (UPS)


Specifications
• Stock Code SOLXCLB12V20AH
• Description Solarix XCube 12V 20Ah Rechargeable Lithium Battery
• Brand Vestwood XCube
• Nominal Voltage: 12.8V
• Nominal Capacity: 20Ah
• Rated Power: 256.4Wh
• Long Service Life Of Around 3000 Cycles
• BMS Function: Overcharge, over-discharge, overcurrent, and temperature protection
• Recommended Charge Voltage: 14.4-14.6V
• Discharge Cut-off Voltage: 10.8V
• Standard Charge Current: 10A
• Max. Charge Current: 20A
• Continuous Discharge Current: 20A
• Peak Discharge Current: 40A @5S
• Voltage Configurations: 12V
• Maximum Configuration: Inverse capacity in parallel
• Maximum Time Between Charges: 3 months
• Dimension (L*W*H): 181*170*77(W*H*D)/ mm
• Weight: Approx. 2.3kg
• Terminal: M5
• Casing Material: ABS
• IP Protection Level: IP65
• 2 Year Warranty

PDF Link
Stock Code: SOLXCLB12V8AH

Solarix XCube 12V 8Ah Rechargeable Lithium Battery - Nominal Voltage 12.8V, Nominal Capacity 8Ah , Rated Energy 102.4Wh, Rechargeable LiFePO4 Li-ion Battery , BMS Function Overcharge and Discharge, Overcurrent and Temperature Protection, Recommended Charge Voltage 14.4V - 14.6V, Discharge Cut-off Voltage 10.8V, Max. Continuous Charge/Discharge Current 8A , Long Service Life Of Around 3000 Cycles, Retail Box, 2 Year Warranty

Click Here For More Detail
Click Here For a Quick Description
Solarix XCube 12V 8Ah Rechargeable Lithium Battery - Nominal Voltage 12.8V, Nominal Capacity 8Ah , Rated Energy 102.4Wh, Rechargeable LiFePO4 Li-ion Battery , BMS Function Overcharge and Discharge, Overcurrent and Temperature Protection, Recommended Charge Voltage 14.4V - 14.6V, Discharge Cut-off Voltage 10.8V, Max. Continuous Charge/Discharge Current 8A , Long Service Life Of Around 3000 Cycles, Retail Box, 2 Year Warranty

Product Overview

The Solarix XCube 12.8V 8Ah Rechargeable Lithium Battery is designed to be Lead Acid Battery Replacement for Alarms, CCTV, Electrical Gate and Garage Motors with a long service life of around 3000 cycles  which is more than 8 times comparing with Lead-acid batteries which are usually only 300-400 cycles) providing 100% of rated capacity each time when you use. The built-in Battery Management System protects the cell from getting damaged like: over or under-voltage, over-current, high temperature or short-circuiting .Additional uses for this battery is in Caravans , Marine boats , Golf carts , solar panels or used as a backup power supply.

Please note that these batteries cannot be connected in series and cannot be used in UPS

Specifications
• Stock Code SOLXCLB12V8AH
• Description Solarix XCube 12V 8Ah Rechargeable Lithium Battery
• Brand Vestwood XCube
• Nominal Voltage: 12.8V
• Nominal Capacity: 8Ah
• Rated Power: 102.4W
• Long Service Life Of Around 3000 Cycles
• BMS Function: Overcharge, over-discharge, overcurrent, and temperature protection
• Recommended Charge Voltage: 14.4-14.6V
• Discharge Cut-off Voltage: 10.8V
• Standard Charge Current: 5A
• Max. Charge Current: 8A
• Continuous Discharge Current: 8A
• Peak Discharge Current: 16A @5S
• Voltage Configurations: 12V
• Maximum Configuration: Inverse capacity in parallel
• Maximum Time Between Charges: 3 months
• Dimension (L*W*H): 151*65*94mm
• Weight: Approx. 0.95kg
• Terminal: F1
• Casing Material: ABS
• IP Protection Level: IP65
• 2 Year Warranty

PDF Link
1 to 10 of 10 items
Page 1
Browse Our Stores

Categories

Our Promise to You

As our products are continuously selling, certain items may be out of stock at times or may no longer be available

In this event, we will supply you with an estimated delivery date or suitable alternatives, also note that E&OE applies to specifications and prices.


Info
Registered
Powered by:




Photographed products shown above are for illustrative purposes only. www.esquireshop.com © 2021
