Stock Code: VW123DPK

KGuard VW123DPK Motion Auto Tracking Intelligent Security Camera - MP CMOS Sensor, 1000TVL, Vari Focal Viewing Angle 25-80 Degrees, 2.8~12mm Optical Zoom, Weather-proof Metal Casing – Black, Retail Box, 1 Year warranty

Click Here For More Detail

Click Here For a Quick Description

Product Overview
The KGuard VW123DPK Motion Auto Tracking Intelligent Security Camera has 1000 TVL high resolution with Megapixel CMOS and 2.8~12mm vari-focal lens with 25~80 degrees viewing angle. Auto-tracking function would automatically track and zoom-in moving object, providing more details. Digital-zooming function provides 5x zoom capability, simulating variable focal lens.

Highlights

•High Resolution 1000TVL
•Vari-focal lens with 25~80 degrees
•Automatically track and zoom in moving object
•5X digital zoom via camera controller
•Night vision up to 50 meters
•Weather-proof metal casing
•Both indoor & outdoor applications

Stock Code: HW912A

KGuard HW912A Indoor and Outdoor Bullet type Camera - 1/3'' KGUARD Fulcolor sensor, 800TVL, 75 degrees viewing angle, Lens-3.6mm Fixed , Viewing Angle- 75 Degrees , Night Vision Distance-25m , WDR Function , Retail Box, 1 Year warranty

Click Here For More Detail

Click Here For a Quick Description

Product Overview
The KGuard HW912A Indoor and Outdoor camera is a 800 TVL high resolution cameras with 3.6mm lens (for wide focus) providing high quality color images. Built-in WDR (wide dynamic range) function generates better image under high-contrast lighting environment. All cameras have powerful night vision with a range of up to 25m/82ft in total darkness and have waterproof cases to protect the camera and survive rainy days.

Specifications
• Model Name-HW912A
• Video Image Sensor-1/3" CMOS with IR Cut Filter
• Horizontal Resolution 800TVL
• Electronics Shutter-NTSC 1/60-1/120,000(sec) / PAL 1/50-1/120,000(sec)
• Lens-3.6mm Fixed
• Viewing Angle- 75 Degrees
• Video Output- 1.0VP-P, 75Ω
• S/N Ratio-More than 48dB（AGC OFF）
• Day / Night Mode-Color during day / switches to B&W at night
• Minimum Illumination- While Infrared LED on "0" lux
• Gain Control-Auto
• Backlight Compensation-Auto
• Night Vision Distance-25m / 82ft
• Illumination-Infrared LED
• Infra-Red Wavelength- 850nm
• Infra-Red LED Life -10,000hrs

General
• WDR Function
• Indoor / Outdoor-Weather-proof (Both)
• Operating Temperature :-10~50°C / 14~122°F
• Storage Temperature :-20~70°C / -4~158°F
• Body Construction-Aluminium
• "Dimensions - Camera with Stand (WxDxH)"-68x58x153mm
• Weight - Camera with Stand-240g

Stock Code: HW113FPK

KGuard 1000TVL Auto Tracking Camera - A high resolution camera with a fixed lens and 65 degree viewing angle.Automatic tracking Long-range night vision up to 30m, Weatherproof, 65 degree viewing angle, Retail Box, 1 Year warranty

Click Here For More Detail

Click Here For a Quick Description

Kgaurd 1000TVL Auto Tracking Camera - A high resolution camera with a fixed lens and 65 degree viewing angle.Automatic tracking Long-range night vision up to 30m, Weatherproof, 65 degree viewing angle, Retail Box, 1 Year warranty

Product Overview
The Kguard HW113FPK-1000 TVL MegaPixel CMOS Outdoor Camera is a high resolution camera with a 3.6mm Fixed Lens with 65 degrees viewing angle. This camera has Auto-tracking function would automatically track and zoom-in moving object, providing more details.

Features
• High Resolution 1000TVL
• 3.6mm Fixed Lens with 65 degrees viewing angle to monitor particular areas
• Automatically track and zoom in moving object
• Long range night vision up to 30 meters (98ft) for day & night surveillance
• The weather-proof metal casing can be used in both indoor & outdoor applications

Specifications
• Model Name HW113FPK
• Description- Kguard 1000 TVL MegaPixel CMOS Outdoor Camera

Video
• Image Sensor Mega Pixel CMOS Sensor
• Electronics Shutter NTSC 1/60-1/100,000(sec) / PAL 1/50-1/100,000(sec)
• Horizontal Resolution 1000 TV Lines
• Lens 3.6mm Fixed
• Viewing Angle 65 Degrees
• Video Output 1.0VP-P,75Ω
• S/N Ratio More than 48dB（AGC OFF）
• Day / Night Mode Colour during day / switches to B&W at night
• Minimum Illumination While Infrared LED ON "0" lux
• Gain Control Auto
• Backlight Compensation Auto

Night Vision
• Night Vision Distance Up to 30m / 98ft
• Illumination Infrared LED
• Infra-Red Wavelength 850nm
• Infra-Red LED Life 10,000hrs

General
• Indoor / Outdoor Weather-proof (Both)
• Camera Controller Yes
• Auto Tracking Yes
• Operating Temperature -10~50°C / 14~122°F
• Storage Temperature -20~70°C / -4~158°F
• Camera Dimension 167.5x72x63mm / 6.6x2.8x2.5"
• Body Construction Aluminium
• Weight - Camera with Stand 350g / 0.77lbs

Stock Code: AC-515T

AC Unico CAM 1/3 Sony Super HAD CCD - Does Not Include Lens - Compatible with Various Lens, Delicate appearance image sensor: 1/3* Sony super had ccd Effective pixels PAL-792(H) x 698 (V) signal system: PAL/NTSC Horizontal Resolution: 540TV line Minimum illumination:F1.2 0.5lux S/N RATIO More Than :50db Video output: VIDEO OUT (BNC) Power Requirement:DC12V/500mA Power Consumption:2.8w , Retail Box , 1 year warranty

Click Here For More Detail

Click Here For a Quick Description

Specifications
• Model-AC-515T
• Image Sensor : 1/3 SONY Super HAD CCD
• Effective Pixels : PAL:792(H)×698(V) /NTSC:768(H)×494(V)
• Sensing Area: 4.8mm×3.6mm
• Signal System : PAL/NTSC
• Horizontal Resolution: 540 TV Line
• Lens Mount : C/CS mount (Mount Optional )
• Minimum Illumination: 0.5Lux/F1.2
• Gain Control :on
• Back Light Compensation: on/off Switchable
• Electronic Shutter :on/off Switchable
• Shutter Speed :1/501/601/100,00s
• Auto Iris Lens : VIDEO/DC Switchable
• S/N Ration :More than 52db(AGC OFF)
• Sync .system :Internal
• Video Output : 1.0Vp-p,75ΩBNC
• Power Requirement : DC12V/500mA
• Power Consumption : Less than 2.0W
• Video Out: VIDEO OUT ( BNC )
• Dimensions mm: 90×58×60mm

Stock Code: DS-2CE16D0T-LPFS2.8MM

Click Here For More Detail

Click Here For a Quick Description

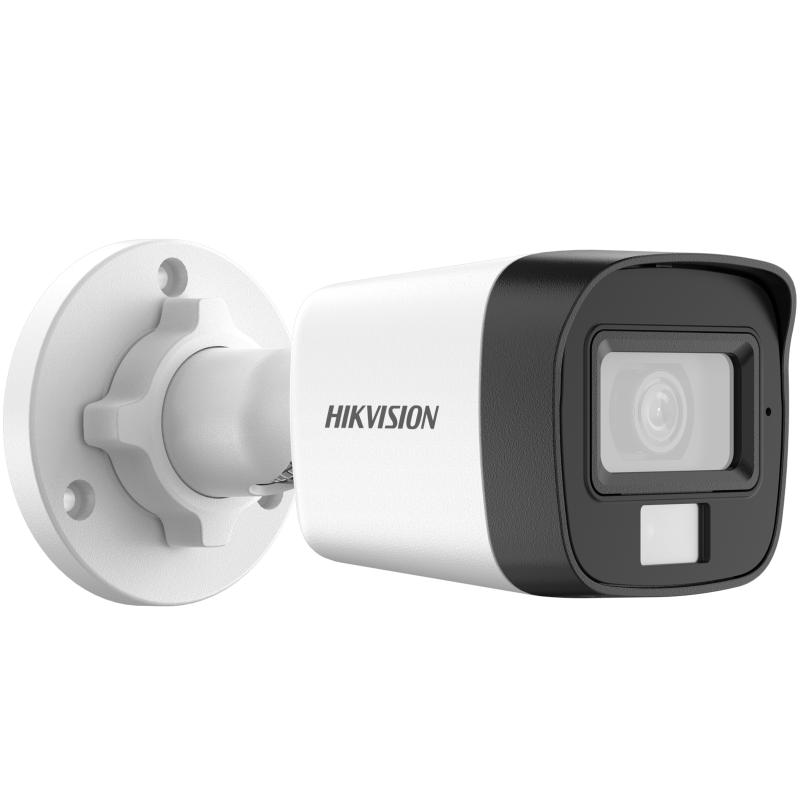

HIKvision 2MP Bullet 2.8mm Hybrid Audio Camera – Image Sensor 2 MP CMOS, Max Resolution 1920 × 1080, Min Illumination 0.01 Lux @ (F1.6, AGC ON) / 0 Lux with IR, Lens 2.8 mm fixed FOV 101° horizontal / 56° vertical / 118° diagonal, Day/Night ICR auto-switch. Smart IR up to 25 m, White Light up to 20 m, Frame Rate 1080p @ 25/30 fps (TVI/AHD/CVI/CVBS), Built-in Microphone pickup up to 5 m, Image Enhancement DWDR/BLC/HLC/Smart IR/Global W/B. Power 12 VDC Max. 3.3 W, IP67 water/dust resistant, Operating -40°C to 60°C, Dimensions 138.8 × 60.9 × 57.9 mm, Weight 155 g.

Product Overview
The HIKvision DS-2CE16D0T-LPFS(2.8MM) is a compact 2MP bullet camera from the Turbo HD Value Series, designed for reliable hybrid surveillance in indoor/outdoor environments. It supports multiple video formats (TVI/AHD/CVI/CVBS) with built-in microphone for audio-over-coax, Smart Hybrid Light (IR/white light), and IP67 weatherproofing, making it ideal for homes, businesses, or small-scale CCTV systems requiring clear 1080p footage day or night.

Specifications
- Product Code: DS-2CE16D0T-LPFS2.8MM
- Product Description: HIKvision 2MP Bullet 2.8mm Hybrid Audio Camera
- Image Sensor: 2 MP CMOS
- Max Resolution: 1920 × 1080
- Min Illumination: 0.01 Lux @ (F1.6, AGC ON), 0 Lux with IR
- Shutter Time: PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
- Lens: 2.8 mm fixed, FOV: 101° horizontal / 56° vertical / 118° diagonal
- Day/Night: ICR auto-switch
- Angle Adjustment: Pan 0-360°, Tilt 0-90°, Rotation 0-360°
- Supplement Light: Smart IR (up to 25 m), White Light (up to 20 m)
- Frame Rate: 1080p @ 25/30 fps (TVI/AHD/CVI), CVBS PAL/NTSC
- Power: 12 VDC ±25%, Max. 3.3 W
- Operating Conditions: -40°C to 60°C, 90% RH (non-condensing)
- Protection: IP67 water/dust resistant
- Material: Plastic
- Video Output: Switchable TVI/AHD/CVI/CVBS
- Microphone: Built-in, pickup up to 5 m
- Image Enhancement: DWDR, BLC, HLC, Smart IR, Global W/B
- Dimensions: 138.8 × 60.9 × 57.9 mm (5.47" × 2.4" × 2.3")
- Weight: Approx. 155 g (0.34 lb)

Stock Code: CB01A

Securnix 1/3 inch B/W CCD Camera 430TV line - Compatible with Various Lens, Delicate appearance image sensor: 1/3* CCD image sensor Effective pixels PAL-512(H) x 492 (V) signal system: PAL/NTSC Horizontal Resolution: 430TV line Minimum illumination:F1.2 0.5lux S/N RATIO More Than :50db Video output: VIDEO OUT (BNC) Power Requirement:DC12V/500mA Power Consumption:2.8w, Retail Box, 1 Year Warranty

Click Here For More Detail

Click Here For a Quick Description

Securnix 1/3" B/W CCD Camera 430TV line - Compatible with Various Lens, Delicate appearance image sensor: 1/3* CCD image sensor Effective pixels PAL-512(H) x 492 (V) signal system: PAL/NTSC Horizontal Resolution: 430TV line Minimum illumination:F1.2 0.5lux S/N RATIO More Than :50db Video output: VIDEO OUT (BNC) Power Requirement:DC12V/500mA Power Consumption:2.8w, Retail Box, 1 Year Warranty

Stock Code: CB010

Securnix 1.3 inch B/W CCD Camera 460TV line - Compatible with Various Lens, Delicate appearance image sensor: 1/3* CCD image sensor Effective pixels PAL-512(H) x 492 (V) signal system: PAL/NTSC Horizontal Resolution: 420TV line Minimum illumination:F1.2 0.5lux S/N RATIO More Than :50db Video output: VIDEO OUT (BNC) Power Requirement:DC12V/500mA Power Consumption:2.8w, Retail Box, 1 Year Warranty

Click Here For More Detail

Click Here For a Quick Description

Securnix 1.3 inch B/W CCD Camera 460TV line -Compatible with Various Lens, Delicate appearance image sensor: 1/3* CCD image sensor Effective pixels PAL-512(H) x 492 (V) signal system: PAL/NTSC Horizontal Resolution: 420TV line Minimum illumination:F1.2 0.5lux S/N RATIO More Than :50db Video output: VIDEO OUT (BNC) Power Requirement:DC12V/500mA Power Consumption:2.8w, Retail Box, 1 Year Warranty
